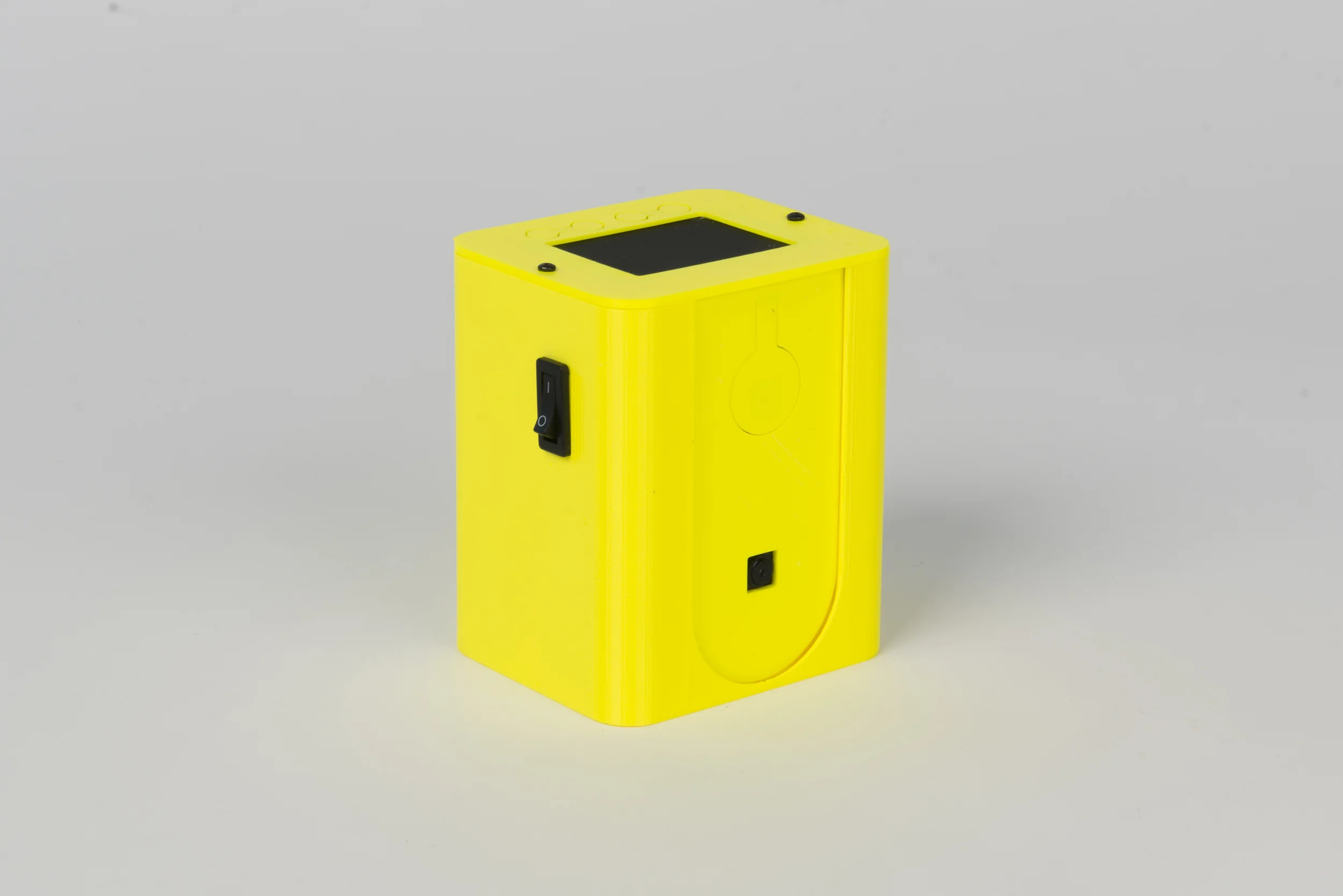

Tall Box Camera

This is a complex housing constructed from three 3D printed parts which orienate the Raspberry Pi and screen perpendicular to each other, requiring a set of jumper wires to connect the input/output pins of the adjacent boards. It runs on eight intergrated AA batteries using PiBorg’s BattBorg module and is the only VisionCam to feature a hard on/off switch. The shell has a large switch cover intended for use as a shutter button,  requiring a separate push button switch to be wired to the GPIO/header of the Raspberry Pi.

The housing is fiddly to construct, but the top mounted screen is satisfying to use due to its similarity a medium-format camera.

The 3D printed shell has zero undercuts and is designed to be printed on any 3D printer with minimal post-production finishing.

 List of Components

• 3D printed case and lasercut 3mm thick acrylic

• Raspberry Pi Model 2 or 3

• Adafruit PiTFT 2.2" HAT details

• Raspberry Pi Camera module V2

• 6 x No.2 6.4mm & 3 No.2 9.5mm self-tapping screws available here

• Pi header jumper wires

• Momentary push button switch, 12mm square - example

• Rocker switch - example

• Micro SD card

• PiBorg BattBorg

• Eight AA batteries and battery holders - example

Download Files

.stl files (for direct 3D printing) and .step (editable assembly) files

to view and download various file formats
Tall Box V1, Fusion360
