ProbesTools is an open access project that publishes all of its research. This development library contains all of the alternative and legacy versions of TaskCams and VisionCams that have been produced during the project, available for those who would like to explore and develop their own ProbeTools and for those maintaining older devices.

We encourage others to adopt and use our design however any usage or altered usage should be clearly and appropriately credited with Interaction Research Studio acknowledgments in compliance with the Creative Commons Attribution 4.0 License.

TaskCam Development Library

The current TaskCam uses second generation hardware based on our TaskCam Arduino Shield. Previous versions are TaskCam are documented here and available to everyone to download and modify. Although these designs and hardware have been superseded, they are archived here for the curious and those maintaining legacy TaskCams.

In addition, we have also added some alternative designs for TaskCam 2.0. Some of these are more developed than others and so each design contains a description of the intended usage and details of any known issues.

TaskCam PrototypeThis was one of our first designs for a TaskCam using standard parts including the legendary Nokia 3310 screen. more — **TaskCam Prototype**
This was one of our first designs for a TaskCam using standard parts including the legendary Nokia 3310 screen. more

3D Printed TaskCam mark oneThis camera uses our first generation Arduino shield and Linksprite JPG camera. more — **3D Printed TaskCam mark one**
This camera uses our first generation Arduino shield and Linksprite JPG camera. more

Paper TaskCam mark oneThis a paper clad version of our first generation TaskCam. more — **Paper TaskCam mark one**
This a paper clad version of our first generation TaskCam. more

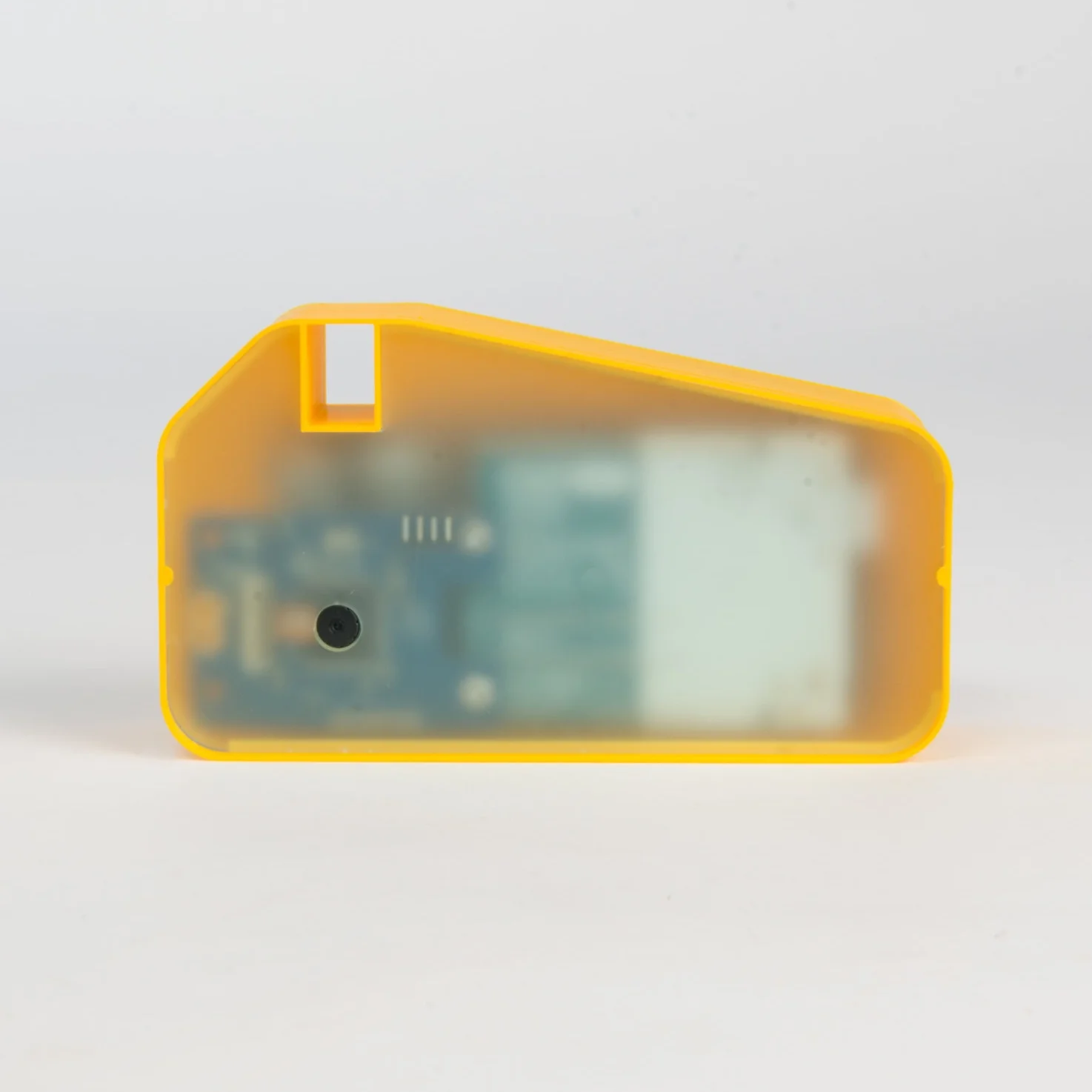

3D TaskCam 2, longLike the Paper TaskCam 2 long, this design houses the unseparated TaskCam Arduino Shield in a lightweight, clip together 3D print more — **3D TaskCam 2, long**
Like the Paper TaskCam 2 long, this design houses the unseparated TaskCam Arduino Shield in a lightweight, clip together 3D print more

Paper TaskCam 2, matchboxThe most pared back TaskCam uses only the camera module and coin cell battery to create a match-box sized Cultural Probe camera more — **Paper TaskCam 2, matchbox**
The most pared back TaskCam uses only the camera module and coin cell battery to create a match-box sized Cultural Probe camera more

3D Printed TaskCam 2, lightweight frame An alternative configuration of the TaskCam Arduino Shield housed in a lightweight 3D printed shell and lasercut acrylic cover more — **3D Printed TaskCam 2, lightweight frame**
An alternative configuration of the TaskCam Arduino Shield housed in a lightweight 3D printed shell and lasercut acrylic cover more

VisionCam Development Library

Compact VisionCam and VisionCam Tall are fully developed 3D printed casings for Raspberry Pi based ProbeTool cameras, however there were many other ideas and configurations were explored during the design process that are available here for everyone to download, modify and build. These designs are not quite perfect but form the starting point for others to use and improve upon either as ProbeTools or simply as housings for Raspberry Pi cameras. Each design features a description of intended usage and details of any known issues.

Rotating CameraThis was one of our first designs for a Raspberry Pi based ProbeTool camera, using a touch screen Pi hat, and unique ball & socket fixing for the camera mount more — **Rotating Camera**
This was one of our first designs for a Raspberry Pi based ProbeTool camera, using a touch screen Pi hat, and unique ball & socket fixing for the camera mount m ore

Mr PotatoheadThis camera is a homage to the classic toy in using numerous accessories to reconfigure the personality of the basic housing . more — **Mr Potatohead**
This camera is a homage to the classic toy in using numerous accessories to reconfigure the personality of the basic housing . more

Threaded Case CameraThis housing features four threaded sockets that allow a number of accessories to be attached, enabling the camera to be used in different situations. more — **Threaded Case Camera**
This housing features four threaded sockets that allow a number of accessories to be attached, enabling the camera to be used in different situations. more

Camera with Lasercut AttachmentsStructurally similar to the Extruded Lens Camera, this housing includes lasercut acrylic elements that make the camera easier to position at different angles on flat surfaces while increasing hanging possibilties. more — **Camera with Lasercut Attachments**
Structurally similar to the Extruded Lens Camera, this housing includes lasercut acrylic elements that make the camera easier to position at different angles on flat surfaces while increasing hanging possibilties. more

Selfie Camera with Lasercut AttachmentsFollowing on from the Lasercut Attachment Camera, this camera sees that adoption of the selfie format favoured in final designs of VisionCam.. more — **Selfie Camera with Lasercut Attachments**
Following on from the Lasercut Attachment Camera, this camera sees that adoption of the selfie format favoured in final designs of VisionCam.. more

Tall Box CameraThis is a complex housing constructed from three 3D printed parts which orienate the Raspberry Pi and screen perpendicular to each other, requiring a set of jumper wires to connect the input/output pins of the adjacent boards.. more — **Tall Box Camera**
This is a complex housing constructed from three 3D printed parts which orienate the Raspberry Pi and screen perpendicular to each other, requiring a set of jumper wires to connect the input/output pins of the adjacent boards.. more

Compact Box CameraBased on the Tall Box Camera, this housing is constructed from four 3D printed parts, whose production method forms the basis for the later 3D printed TaskCams. more — **Compact Box Camera**
Based on the Tall Box Camera, this housing is constructed from four 3D printed parts, whose production method forms the basis for the later 3D printed TaskCams. more

Camera with Battery Holder - Type AThis housing is made from a 3D printed shell and a lasercut acrylic rear panel, it features hooks and a ledge for attaching a USB battery with cable ties or elastic bands. more — **Camera with Battery Holder - Type A**
This housing is made from a 3D printed shell and a lasercut acrylic rear panel, it features hooks and a ledge for attaching a USB battery with cable ties or elastic bands. more

Hooked Case Camerahis housing is made from 3D printed front and rear shells. The integrated hooks are for attaching a USB battery with cable ties or elastic bands in various configurations.. more — **Hooked Case Camera**
his housing is made from 3D printed front and rear shells. The integrated hooks are for attaching a USB battery with cable ties or elastic bands in various configurations.. more

Wavy Threaded Case CameraThis housing has a distinct wrap around texture and a threaded socket allowing for an accessory to be attached. more — **Wavy Threaded Case Camera**
This housing has a distinct wrap around texture and a threaded socket allowing for an accessory to be attached. more

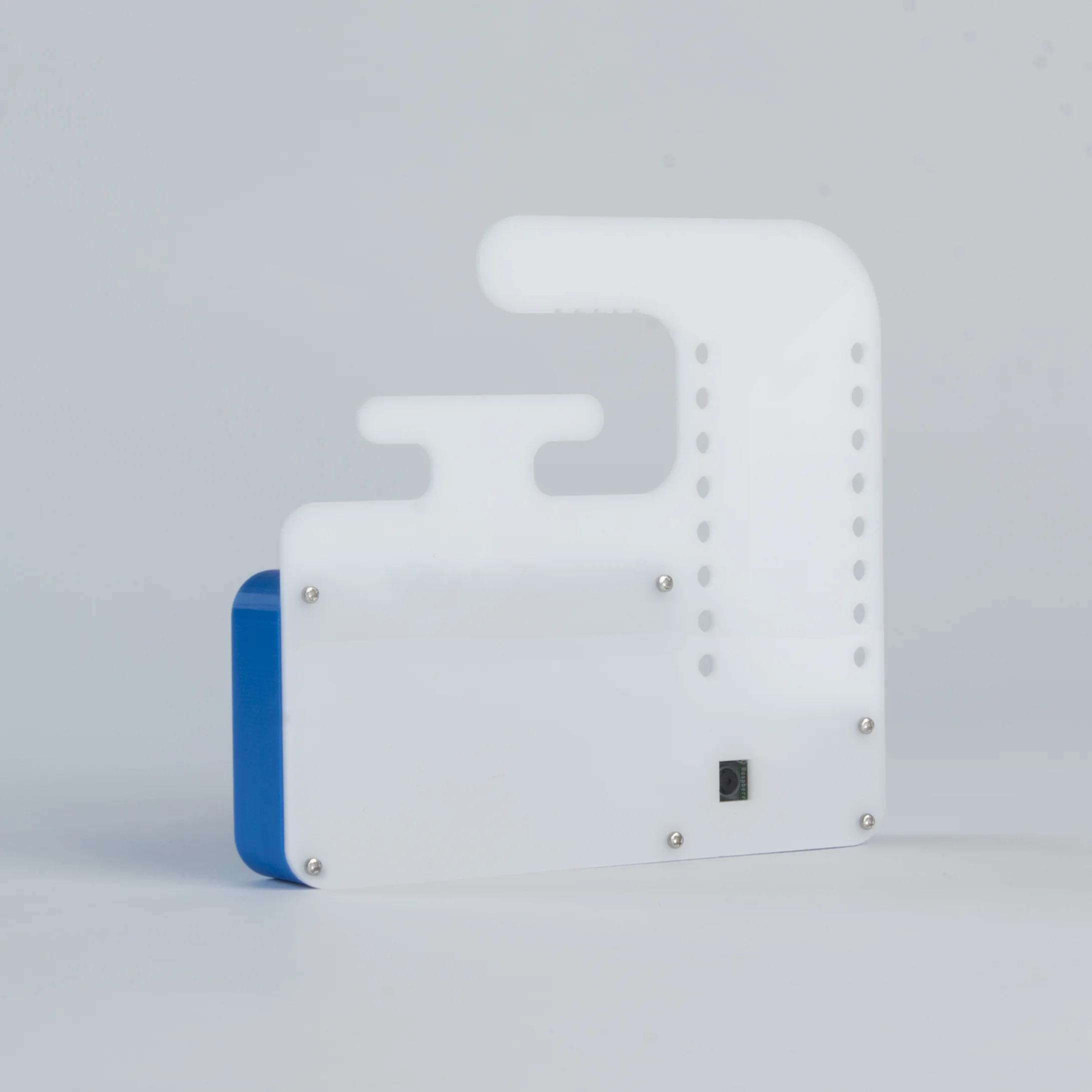

Camera with Lasercut Hanger - Type AThis housing is made from a 3D printed shell and a lasercut acrylic rear panel. The panel features perforations for attaching a USB battery with cable ties or elastic bands, hooks for wrapping the USB power cable … — **Camera with Lasercut Hanger - Type A**
This housing is made from a 3D printed shell and a lasercut acrylic rear panel. The panel features perforations for attaching a USB battery with cable ties or elastic bands, hooks for wrapping the USB power cable and a hole for hanging the camera itself. more

Camera with Battery Holder - Type BThis housing is made from a 3D printed shell and a lasercut acrylic rear panel, it features hooks and a ledge for attaching a USB battery with cable ties or elastic bands. On this version, the Pi end of the USB pow… — **Camera with Battery Holder - Type B**
This housing is made from a 3D printed shell and a lasercut acrylic rear panel, it features hooks and a ledge for attaching a USB battery with cable ties or elastic bands. On this version, the Pi end of the USB power cable is captive inside the housing.. more

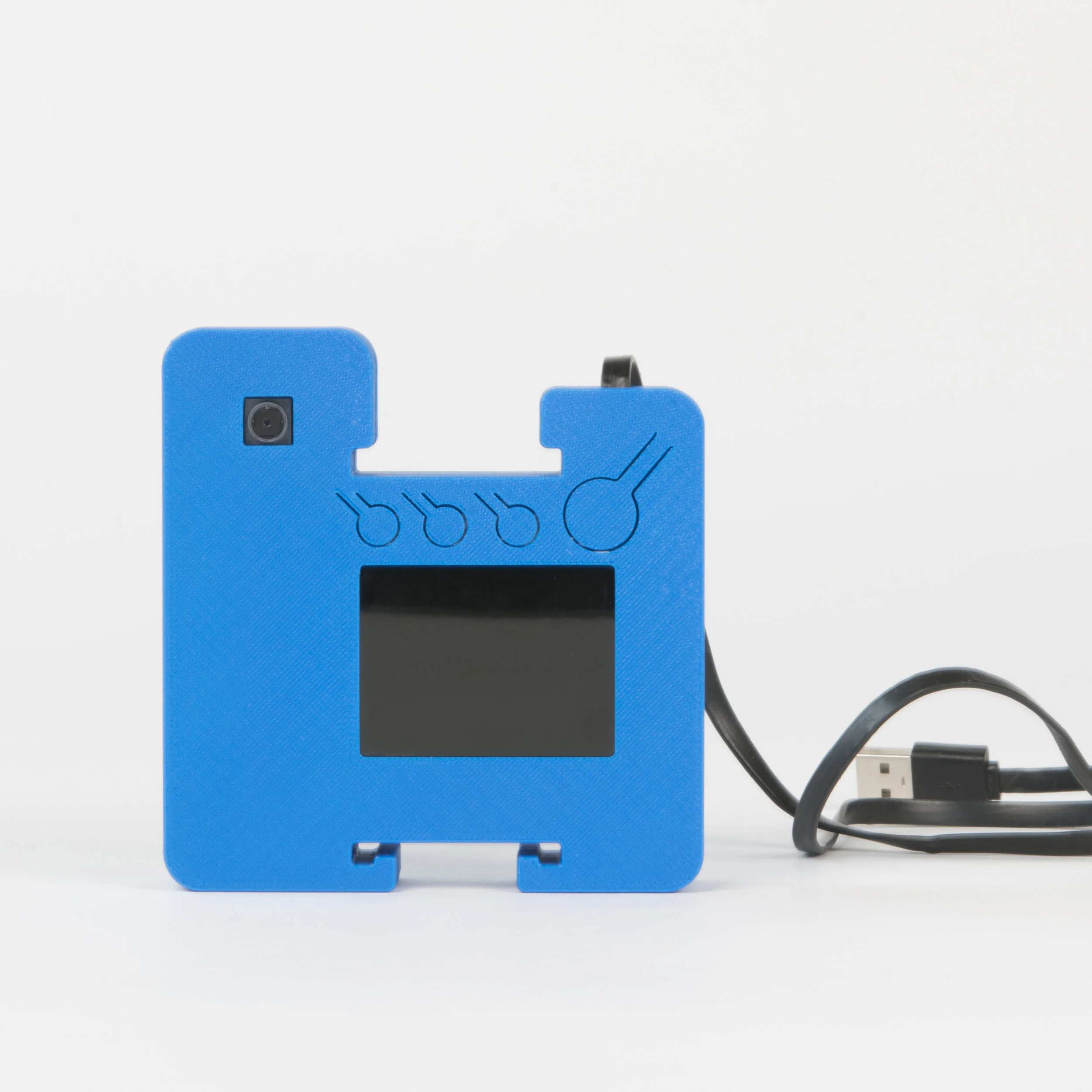

Selfie Camera with Hooked CaseThis version was one of the first in the development of the VisionCam to flip the camera to the selfie format, coinciding with the development of the timelaspe VisionCam software. more — **Selfie Camera with Hooked Case**
This version was one of the first in the development of the VisionCam to flip the camera to the selfie format, coinciding with the development of the timelaspe VisionCam software. more

AccessoriesA collection of threaded parts that screw into cameras featuring threaded sockets. more — **Accessories**
A collection of threaded parts that screw into cameras featuring threaded sockets. more

Camera with Lasercut Hanger - Type BThis housing is made from a 3D printed shell and a lasercut acrylic rear panel. The panel features perforations for attaching a USB battery with cable ties or elastic bands, hooks for wrapping the USB power cable … — **Camera with Lasercut Hanger - Type B**
This housing is made from a 3D printed shell and a lasercut acrylic rear panel. The panel features perforations for attaching a USB battery with cable ties or elastic bands, hooks for wrapping the USB power cable and a hook for hanging the camera itself.. more

Camera with Battery Holder - Type CThis housing is made from a 3D printed shell and rear panel. The integrated rear panel prongs are for attaching a USB battery with cable ties or elastic bands.. more — **Camera with Battery Holder - Type C**
This housing is made from a 3D printed shell and rear panel. The integrated rear panel prongs are for attaching a USB battery with cable ties or elastic bands.. more

Extruded Lens CameraStructurally similar to the Threaded Case Camera, this housing makes a feature on the lens body and has four threaded sockets that allow a number of accessories to be attached. more — **Extruded Lens Camera**
Structurally similar to the Threaded Case Camera, this housing makes a feature on the lens body and has four threaded sockets that allow a number of accessories to be attached. more
